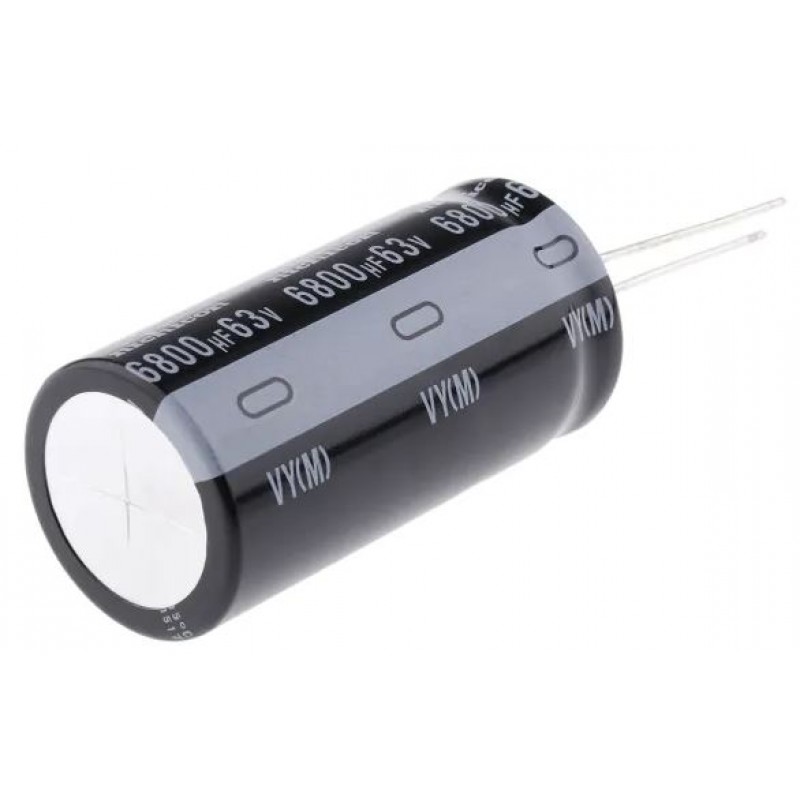

739-5386 Capacitor Electrolytic 6,800uF 63v 25x50m
- For Models: 6800uF63V
- Availability: 2
$7.00
Ex Tax: $6.36
- Description: New Capacitor Electrolytic 6,800uF 63v 25x50m,
- Manufacturer/Make/Supplier: nichicon,
- Appliance Type: LCD TV,
- Model No: 6800uF63V,
- Brand Nichicon
- Capacitance 6800µF
- Voltage 63V dc
- Mounting Type Radial, Through Hole
- Technology Aluminium Electrolytic
- Dimensions 25 (Dia.) x 50mm
- Height 50mm
- Minimum Operating Temperature -55°C
- Diameter 25mm
- Maximum Operating Temperature +105°C
- Lifetime 1000h
- Lead Pitch 12.5mm
- Series VY
- Tolerance ±20%
- Leakage Current 12852 μA
- Ripple Current 2.8A
- Manufacturers Part No: 739-5386,
- Condition: New Part in Good Condition,
- History: This Part was purchased from supplier as new ,
- Additional Info: ,
- Stock Keeping Unit(SKU): 739-5386.
Warning
TVs and other Appliances that connected to the Mains Supply, have dangerous voltages inside. Up to 400 volts DC is stored on capacitors in the power supply. These voltages can remain even after the power supply has been removed from the appliance. Never work on an appliance with the power connected unless you are a qualified TV technician. When power is connected the heatsinks in the Power Supply become LIVE and can cause a serious Electric Shock and even Death, if touched.
